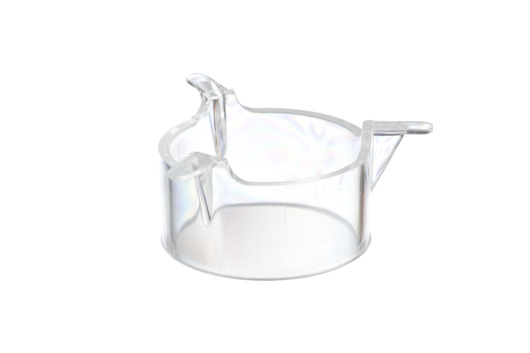

THINCERT CELL CULTURE INSERT FOR 6 WELL PLATES,

TC, STERILE, TRANSPARENT MEMBRANE (PET), PORE DIAMETER: 0,4 µm, 4 MULTIWELL PLATES/BOX, 24 THINCERT INSERTS/BOX
Greiner Bio-One - THINCERT CELL CULTURE INSERT FOR 6 WELL PLATES - 657641
Item No.: 657641
Product Downloads

Account Customer Drawing

Account Datasheets

Basic data
Description: THINCERT CELL CULTURE INSERT FOR 6 WELL PLATES,
TC, STERILE, TRANSPARENT MEMBRANE (PET),
PORE DIAMETER: 0,4 µm, 4 MULTIWELL PLATES/BOX,
24 THINCERT INSERTS/BOX
Sterility: sterile
Qty/case: 24
Qty/inner pack: 1
Packaging
Weight/Case: 0.47 kg
Carton dimension: 385 x 155 x 130 mm
Qty/case: 24
Qty/inner pack: 1
PAL: 2400
Detailed information
Filling volume (ml): 0.00
6 Well ThinCert® Cell Culture Inserts

  • Free of detectable DNase, RNase, human DNA
  • Non-pyrogenic, non-cytotoxic
  • 0.4 µm pore size and transparent optical membrane properties, and therefore applicable in the following fields:
    -  Light microscopy
    -  Electron microscopy
    -  Fluorescence microscopy
    -  Immunocytochemistry
    -  Trans epithelial electric resistance (TEER)
    -  Co-cultivation
    -  Cell retention/cell barrier function
  • Stable clear polystyrene housing
  • Hanging geometry
  • Sealed PET capillary pore membrane
  • Single, sterile blister packing
  • Simplified pipetting due to self-lift geometry
  • Enhanced pipetting access and gas exchange
  • Pore density: 2 x 106 cm-2
  • Culture surface: 452.4 mm²
  • Height (overall): 16.25 mm
  • Inner/outer diameter (top): 24.85 mm / 27.85 mm
  • Working volume ThinCert®: 1.0 ml - 3.6 ml
  • Working volume well: 2.0 ml - 4.15 ml
  • Improved cell adhesion through physical surface treatment
  • Sterile

IFU CELLdisc with closed filling caps (-CF1/ -CF2)
IFU Instructions for Use / PDF, 457 KB
IFU CELLdisc
IFU Instructions for Use / PDF, 961 KB
Application Note: Co-culture in ThinCert® cell culture inserts
Application Notes / PDF, 541 KB
Application Note: Transepithelial Electrical Resistance and Impedance Measurements with ThinCert® Cell Culture Inserts and the cell Zscope® System
Application Notes / PDF, 635 KB
Application Note: The reconstruction and immunocytochemical characterisation of polarised epithelia in ThinCert® cell culture inserts
Application Notes / PDF, 602 KB
Application Note: siRNA dependent gene silencing in HeLa cells cultivated on
Application Notes / PDF, 508 KB
Labware & Research BioScience Product Catalogue
Product Catalogue / PDF, 37 MB
Cell Culture
Brochure / PDF, 7 MB
Application Note: Cultivation and Differentiation of Human Adipose Derived Mesenchymal Stem Cells with CELLSTAR® and CELLCOAT® Cell Culture Products
Application Notes / PDF, 539 KB
IFU ThinCert® Inserts
IFU Instructions for Use / PDF, 258 KB
Application Note: Tissue reconstruction using ThinCert® Cell Culture Inserts and Plates
Application Notes / PDF, 739 KB
Forum No 8: ThinCert® cell culture products – innovative solutions for cell-based assays and tissue culture
Scientific Publications / PDF, 810 KB
Application Note: Improved Cultivation and Differentiation of Embryonic Stem Cells
Scientific Publications / PDF, 2 MB
