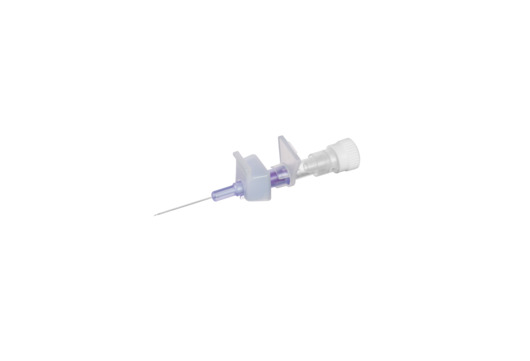

CLiP® Neo is an automatic safety IV catheter designed for small veins found in the neonatal, paediatric or elderly patient groups. The product is available in 24 and 26 Gauge to cater to demanding physical conditions and different clinical needs. The optimized needle notch provides instant blood response between the catheter and the needle. CLiP® Neo has been developed with the user and patient in mind and its use contribute to safe and successful insertion.
Do you want to learn more about CLiP® Neo? We offer free online training for up-to-date clinical knowledge on CLiP® automatic safety IV catheters. Go to our E-learning Portal, select your preferred course and start your training today!
Carefully select and aseptically prepare the site.
Remove the needle cover and make sure the needle and the catheter tip are properly aligned.
Perform veinpuncture.
Observe instant blood response (flashback) along the catheter length, not in the chamber behind the wing housing.
Lower the insertion angle, advance about 1 mm along the vein to ensure the catheter tip is in the vein and simultaneously start to withdraw the needle.
Advance further, hold the catheter hub for stabilization and compress the vein above the tip of the catheter. Withdraw the needle completely. Always pull the needle straight back and confirm safety clip activation.
Discard the needle in an approved sharps container.
Connect a Luer connector, cap or IV infusion line.
Remove the wing holder and foldout the wings for stable fixation.
Secure the IV catheter to ensure a clear fluid path and flush the catheter according to local protocol.
Cover the insertion site with a sterile dressing.
Infusion dead space is the internal volume of a catheter and tubing through which a fluid must pass before reaching a patient's intravenous space. In the table below the dead space for CLiP® Neo 24-26 G is presented.
| Gauge | Volume (ml) |
|---|---|
| 26G x 19mm | 0.11 |
| 24G x 19mm | 0.11 |
