CLiP® Ported is an automatic safety IV catheter with injection port. CLiP® Ported is available in a comprehensive range to meet demanding physical conditions and different clinical needs. The products have been developed with the user and patient in mind - configured to provide excellent insertion properties. When patients and their conditions vary, CLiP® Ported remains consistent and its use contributes to safe and successful insertion.
Do you want to learn more about CLiP® Ported? We offer free online training for up-to-date clinical knowledge on CLiP® automatic safety IV catheters. Go to our E-learning Portal, select your preferred course and start your training today!
Carefully select and aseptically prepare the site.
Remove the needle cover and make sure the needle and the catheter tip are properly aligned.
Perform veinpuncture.
Observe first flashback (blood response) in the flashback chamber. For 24 gauge the flashback appears along the catheter length.
Lower the insertion angle, advance 1-2 mm and ensure the catheter tip is in the vein by second flashback (blood response) along the catheter length (14-22 Gauge).
Advance further, hold the catheter hub for stabilization and compress the vein above the tip of the catheter. Withdraw the needle completely. Always pull the needle straight back and confirm safety clip activation.
Discard the needle in an approved sharps container.
Connect a Luer connector, cap or IV infusion line.
Secure the IV catheter to ensure a clear fluid path and flush the catheter according to local protocol.
Close the port and cover the insertion site with a sterile dressing.
Infusion dead space is the internal volume of a catheter and tubing through which a fluid must pass before reaching a patient's intravenous space. In the table below the dead space for CLiP® Ported 14-24 G is presented.
| Gauge | Volume (ml) | Gauge | Volume (ml) |
|---|---|---|---|
| 24G x 19mm | 0.11 | 18G x 45mm | 0.15 |
| 22G x 25mm | 0.11 | 17G x 45mm | 0.16 |
| 20G x 32mm | 0.12 | 16G x 45mm | 0.18 |
| 18G x 32mm | 0.14 | 14G x 45mm | 0.22 |
CLiP® Ported Safety I.V. Catheter FEP 14G x 45mm single-packed, sterile, not made with natural rubber latex

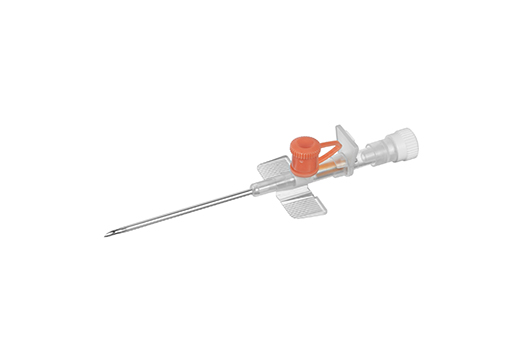

CLiP® Ported Safety I.V. Catheter PUR 14G x 45mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter FEP 16G x 45mm single-packed, sterile, not made with natural rubber latex

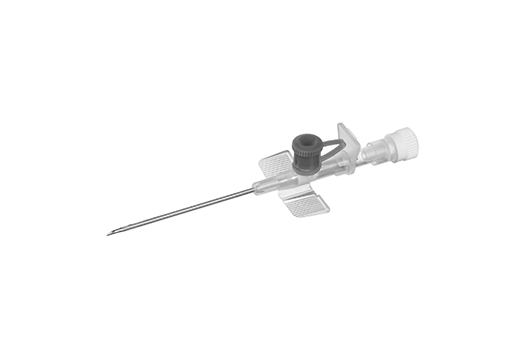

CLiP® Ported Safety I.V. Catheter PUR 16G x 45mm single-packed, sterile, not made with natural rubber latex

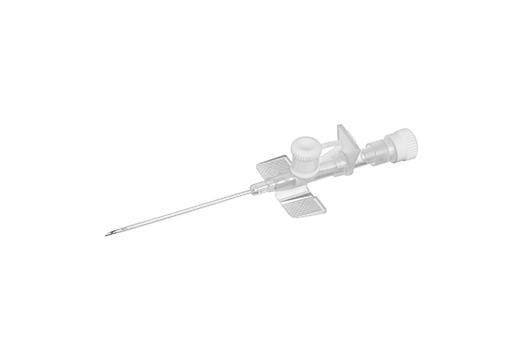

CLiP® Ported Safety I.V. Catheter FEP 17G x 45mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter PUR 17G x 45mm single-packed, sterile, not made with natural rubber latex

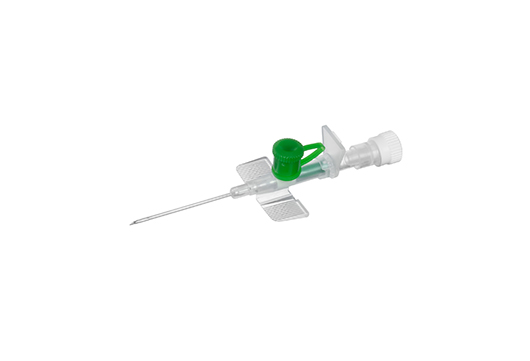

CLiP® Ported Safety I.V. Catheter FEP 18G x 32mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter PUR 18G x 32mm single-packed, sterile, not made with natural rubber latex

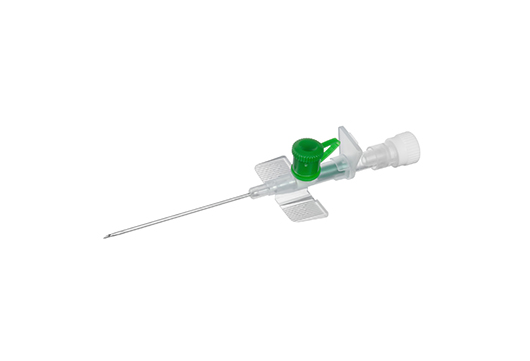

CLiP® Ported Safety I.V. Catheter FEP 18G x 45mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter PUR 18G x 45mm single-packed, sterile, not made with natural rubber latex

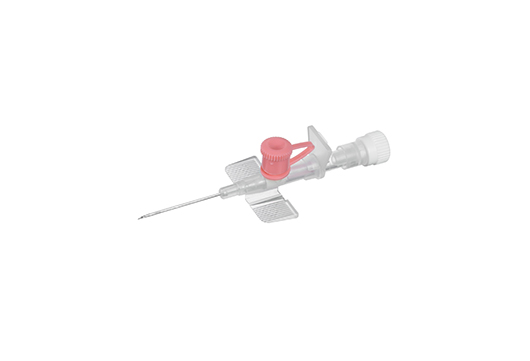

CLiP Ported Safety I.V. Catheter FEP 20G x 25mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter FEP 20G x 32mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter PUR 20G x 32mm single-packed, sterile, not made with natural rubber latex

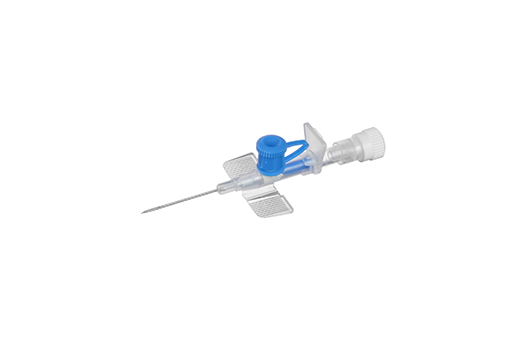

CLiP® Ported Safety I.V. Catheter FEP 22G x 25mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter PUR 22G x 25mm single-packed, sterile, not made with natural rubber latex
CLiP® Ported Safety I.V. Catheter FEP 24G x 19mm single-packed, sterile, not made with natural rubber latex

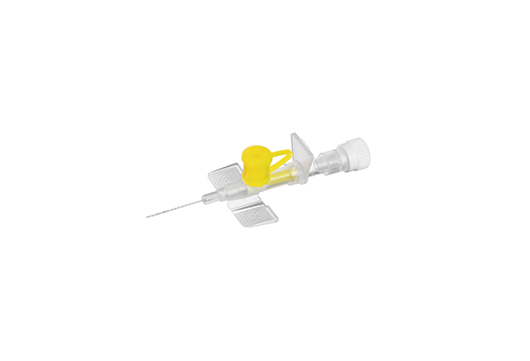

CLiP® Ported Safety I.V. Catheter PUR 24G x 19mm single-packed, sterile, not made with natural rubber latex
