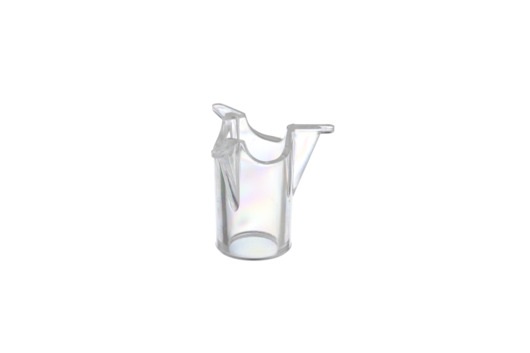

THINCERT CELL CULTURE INSERT FOR 24 WELL PLATES,

TC, STERILE, TRANSPARENT MEMBRANE (PET), PORE DIAMETER: 3 µm, 2 MULTIWELL PLATES/BOX, 48 THINCERT INSERTS/BOX
Greiner Bio-One - THINCERT CELL CULTURE INSERT FOR 24 WELL PLATES - 662630
Item No.: 662630
Product Downloads

Account Customer Drawing

Account Datasheets

Basic data
Description: THINCERT CELL CULTURE INSERT FOR 24 WELL PLATES,
TC, STERILE, TRANSPARENT MEMBRANE (PET),
PORE DIAMETER: 3 µm, 2 MULTIWELL PLATES/BOX,
48 THINCERT INSERTS/BOX
Sterility: sterile
Qty/case: 48
Qty/inner pack: 1
Packaging
Weight/Case: 0.43 kg
Carton dimension: 260 x 160 x 155 mm
Qty/case: 48
Qty/inner pack: 1
PAL: 11520
Detailed information
Filling volume (ml): 0.00
24 Well ThinCert® Cell Culture Inserts

  • Free of detectable DNase, RNase, human DNA
  • Non-pyrogenic, non-cytotoxic
  • 3.0 µm pore size and transparent optical membrane properties, and therefore applicable in the following fields:
    - Light microscopy
    -  Electron microscopy
    - Fluorescence microscopy
    - Immunocytochemistry
    - Trans epithelial electric resistance (TEER)
    - Transport/diffusion/secretion of small molecules
    - Transport/diffusion/secretion of large molecules (e.g. macromolecules, viruses)
    - Migration/chemotaxis/metastasation
  • Stable clear polystyrene housing
  • Hanging geometry
  • Sealed PET capillary pore membrane
  • Single, sterile blister packing
  • Simplified pipetting due to self-lift geometry
  • Enhanced pipetting access and gas exchange
  • Pore density: 0.6 x 106 cm-²
  • Culture surface: 33.6 mm²
  • Height (overall): 16.25 mm
  • Inner/outer diameter (top): 8.4 mm / 10.4 mm
  • Working volume ThinCert®: 0.1 ml - 0.35 ml
  • Working volume well: 0.4 ml - 1.2 ml
  • Improved cell adhesion through physical surface treatment
  • Sterile
