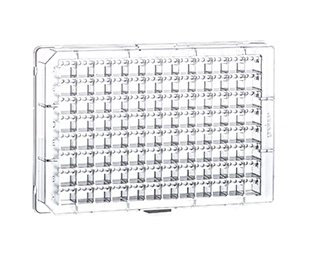

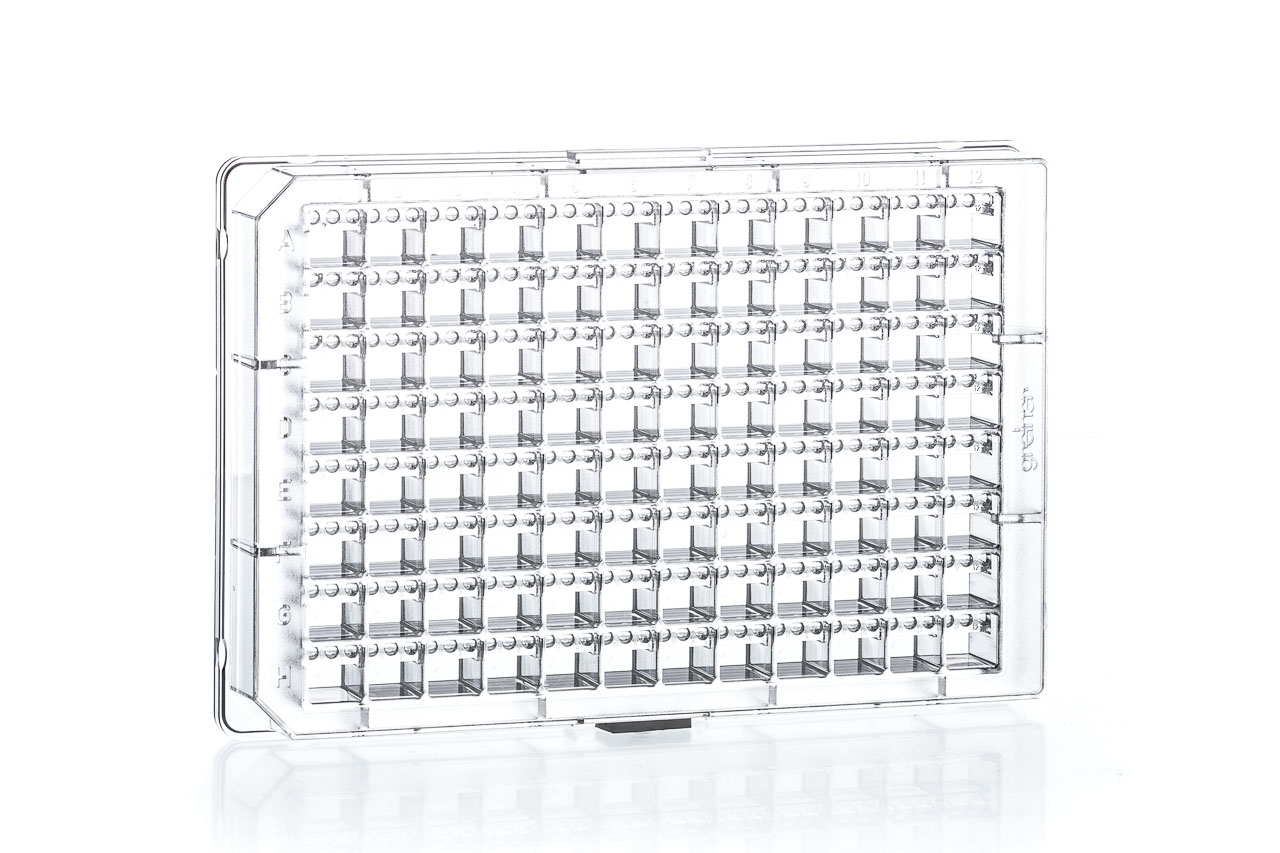

CRYSTALQUICK RW PLATE, 96 WELL, COC, LBR,

ROUND WELLS, CONCAVE BOTTOM, 10 PCS./BAG
Cikkszám: 609820
Product Downloads

Account Customer Drawing

Account Datasheets

Alapadatok
Leírás: CRYSTALQUICK RW PLATE, 96 WELL, COC, LBR,
ROUND WELLS, CONCAVE BOTTOM, 10 PCS./BAG
Darab/doboz: 40
Darab/belső csomag: 10
Csomagolás
Tömeg/doboz: 2,20 kg
Doboz méretei: 335 x 250 x 165 mm
Darab/doboz: 40
Darab/belső csomag: 10
PAL: 6160
Részletes információk
Töltési térfogat (ml): 0.00
96 Well CrystalQuick, crystallisation plates for sitting drop applications

  • Are optimised for sealing with VIEWseal adhesive film
  • In combination with thr CrystalDrop lid, simultaneous experiments are possible with the sitting drop and hanging drop method
  • Suitable for automatised applications
  • LBR version and therefore suitable for the use with polarised light
  • Concave bottom
  • With three crystallisation well per reservoir, CrystalQuick square wells makes it possible to test 288 samples per plate
  • Alphanumeric well coding
  • Well per reservoir: 3
  • Max. well volume: 1.9 µl
  • Volume per reservoir: 320 µl
  • Height: 14.4 mm

Kapcsolódó dokumentumok

Forum No 13: CrystalQuickX: Optimised platform for in-situ analysis of protein crystals
Tudományos publikációk / PDF, 1 MB
Forum No 7: Advanced High-Throughput Platforms for Protein Crystallisation
Tudományos publikációk / PDF, 472 KB
