Item No.: 657640

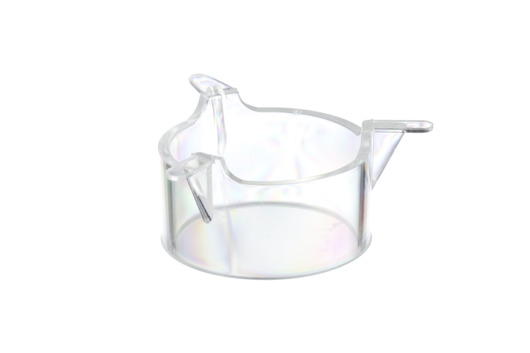

THINCERT CELL CULTURE INSERT FOR 6 WELL PLATES,

TC, STERILE, TRANSLUCENT MEMBRANE (PET),
PORE DIAMETER: 0,4 µm, 4 MULTIWELL PLATES/BOX,
24 THINCERT INSERTS/BOX

Product Downloads

Customer Drawing

Datasheets

Basic data

Product description: 6 Well Thincert, 0.4µm pore diameter,
translucent, sterile
Sterility: sterile
Packing unit: 24

Packaging

Packaging weight per CAR: 0.47 kg
Carton dimension: 260 x 160 x 155 mm
Packing unit: 24
PAL: 5760

Detailed information

6 Well ThinCert™ Cell Culture Inserts

  • Free of detectable DNase, RNase, human DNA
  • Non-pyrogenic, non-cytotoxic
  • 0.4 µm pore size and translucent optical membrane properties, and therefore applicable in the following fields:
       -  Electron microscopy
       -  Fluorescence microscopy
       -  Immunocytochemistry
       -  Trans epithelial electric resistance (TEER)
       -  Transport/diffusion/secretion of
           small molecules
       -  Co-cultivation
       -  Cell retention/cell barrier function
  • Stable clear polystyrene housing
  • Hanging geometry
  • Sealed PET capillary pore membrane
  • Single, sterile blister packing
  • Simplified pipetting due to self-lift geometry
  • Enhanced pipetting access and gas exchange
  • Pore density: 1 x 108 cm-2
  • Culture surface: 452.4 mm²
  • Height (overall): 16.25 mm
  • Inner/outer diameter (top): 24.85 mm / 27.85 mm
  • Working volume ThinCert™: 1.0 ml - 3.6 ml
  • Working volume well: 2.0 ml - 4.15 ml
  • Improved cell adhesion through physical surface treatment
  • Sterile



Packaging: 4 Multiwell plates per box,
24 ThinCert™ inserts per box
