MICROPLACA CRYSTALQUICK, 96 POCILLOS

MODELO BAJO
Item No.: 609171
Product Downloads

Account Customer Drawing

Account Datasheets

Basic data
Description: MICROPLACA CRYSTALQUICK, 96 POCILLOS
MODELO BAJO
Qty/case: 80
Qty/inner pack: 20
Packaging
Weight/Case: 2,50 kg
Carton dimension: 335 x 250 x 165 mm
Qty/case: 80
Qty/inner pack: 20
PAL: 12320
Detailed information
Filling volume (ml): 0.00

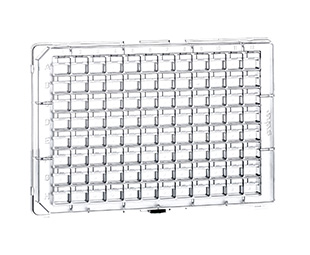

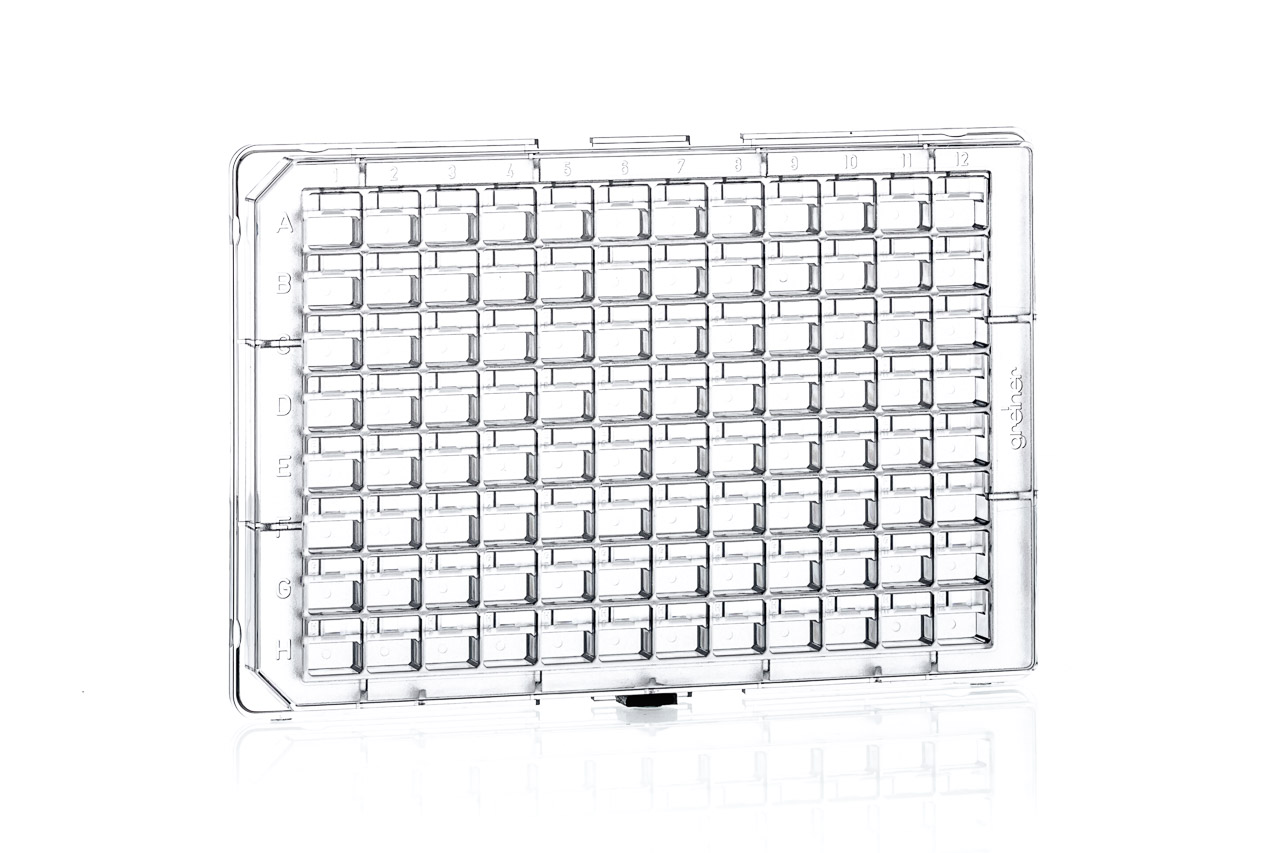

96 Well CrystalQuick, crystallisation plates for sitting drop applications

  • Are optimised for sealing with VIEWseal adhesive film
  • In combination with thr CrystalDrop lid, simultaneous experiments are possible with the sitting drop and hanging drop method
  • Suitable for automatised applications
  • Excellent optical properties
  • Crystal harvesting is made easier by the angled walls of the crystallisation wells
  • The low profile reduces space requirements for storage
  • Alphanumeric well coding
  • Low profile, flat bottom
  • Well per reservoir: 1
  • Max. well volume: 3.9 µl
  • Volume per reservoir: 140 µl
  • Height: 8.0 mm
  • Material properties: standard

Documentos relacionados

Forum No 7: Advanced High-Throughput Platforms for Protein Crystallisation
Publicaciones científicas / PDF, 472 KB
